Field Assmbly SC quick connector can proivide a quick and easy of fiber in the field.Options are avaliable for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels.This connector system removes any requirement for epoxy,adhesive or costly curing ovens and polishing and fiber ederface inspection.
Product Features
1 Alignment in the inner bore of the ceramic ferrule - high precision alignment
2.C-shaped groove takes the palce of V-shaped groove.
3.Ceramic has low thermal coefficient of expansion - working temperature is ranging from -40 ℃ to +85 ℃
4.Ceramic has high rigidity - connection point without deformation
5. Ceramic has good property—long lifetime
6. Easy assembly and high one-time assembly success rate
7.High lifetime, easy assembly, high reliability and high return loss
8. The quick assembly fiber connector can be assembled and disassembled for many times.
9.Super high one-time assembly success rate
10. The SC fast connector is made of special material. Fibers alignment is done in the inner bore of the ceramic ferrule and
fibers are locked by the locker.
Application
1.CATV
2.Active device termination
3. Telecommunication networks
4.Metro
5. Local Area Networks (LANs)
6. Data processing networks
7. Test equipment
8. Premise installation
9.Wide Area Networks(WANs)
| Parameters | Specifications |
| Connector Type | SC/LC/FC/ST |
| Dimension | 60mm |
| Cable Diameters | 0.9/2.0/3.0mm |
| Fiber Mode | SM/MM |
| Grinding end-face | UPC/APC |
| Insertion Loss | UPC | APC |
| ≤0.3dB | ≤0.3dB |
| Return Loss | UPC | APC |
| ≥45dB | ≥50dB |
| Tension Test | ≥100N |
| Operating Temperature | -40℃~+75℃ |

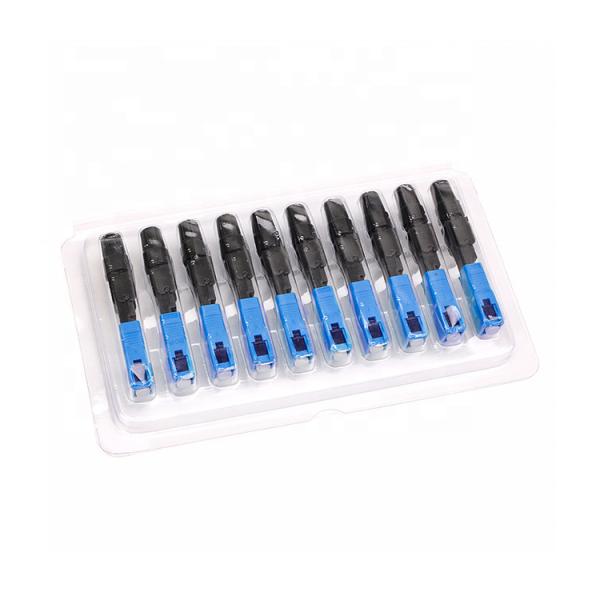

| SC/UPC SC/APC optical fiber single mode fast connector for FTTH drop cable |
| Size(CM) | 60*44.5*24.5 |
| QTY(PCS/Box) | 1000 |
| N.W(KG/BOX) | 5.6 |
| G.W(KG/Box) | 8.5 |
COMPANY PROFILEGuangzhou jiqian fiber optical cable co., LTD is located in guangzhou city, guangdong province mingying west 2 road industrial zone, xintang town, is a collection of scientific research, development, production, sales for the integration of large-scale specialization of high-tech joint-stock enterprise, specializing in the production of various specifications of 2-288 core cable.
FAQ:
1. Are you the real manufacturer?
Yes, we are factory in guangzhou china, welcome to visit us!
2. what is your minimum quantity?
1KM. We support new project of our customers, trial order is available
3.Can I get a sample?
Yes, we provide FREE sample and you just need to pay for express freight.
4.What about Payment?
L/C,T/T,Western Union and Paypal are acceptable.
5.Delivery time?
Generally 3-7 working days, also it is according to qty.
6.Can you supply customized products and logo?
Yes, we supply OEM&ODM service, pls feel free to contact.
